MODEL:HVU-20N Single Output Waterproof Power Supply

Features:
High effectiency, High reliability, Low cost
Protections: Short circuit/Over load/Over voltage/High temperature
Waterproof grade: IP67
Working Frequncy: 65KHz
Suitable for LED lighten and moving sign applications.
1 year warranty

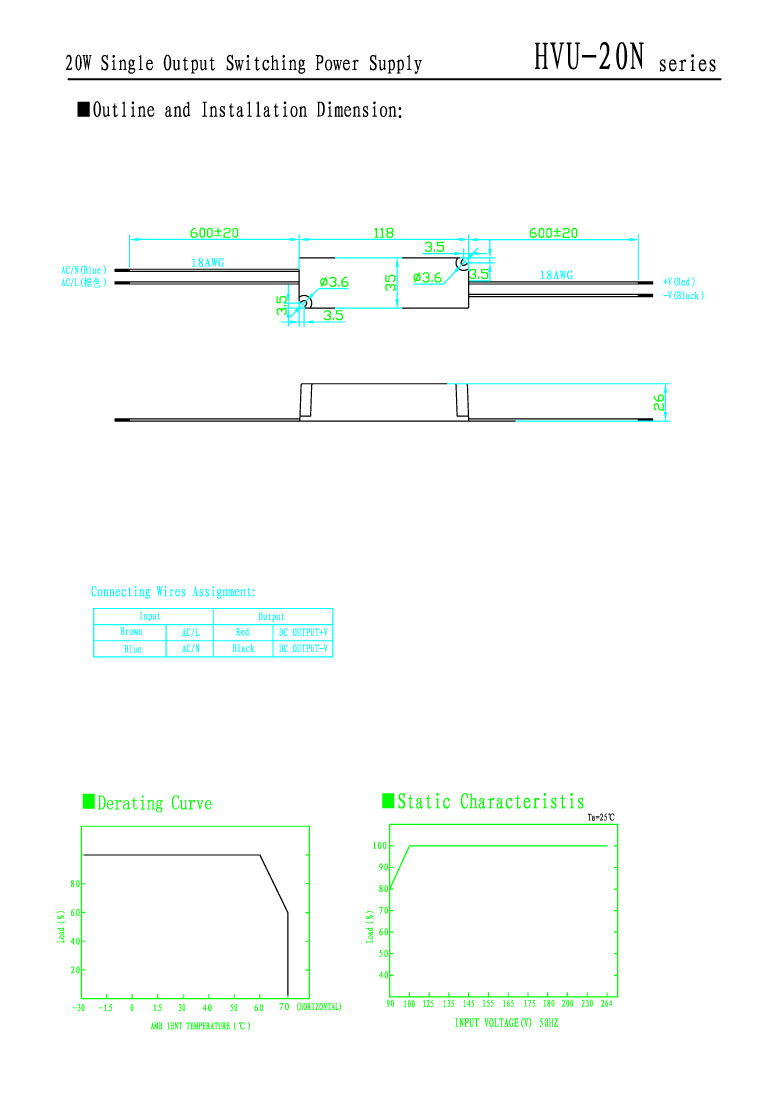

Dimensions: 118*35*26mm £¨L*W*H£©

Shell code£ºH054

MODEL

 HVU-20N-5 HVU-20N-12 HVU-20N-15 HVU-20N-24
OUTPUT

DC Voltage

 5V 12V 15V 24V

Voltage Tolerance(note 3)

 ¡À5% ¡À5% ¡À5% ¡À5%

Rated Current(note 5)

 3A 1.67A 1.33A 0.84A

Current Range

 0-3A 0-1.67A 0-1.33A 0-0.84A

Rated Power

 15W 20W 20W 20.2W

Ripple & Noise(note 2)

 80mVp-p 120mVp-p 120mVp-p 150mVp-p

Setup, Rise, Hold Time

500ms,20ms,50ms/230VAC 500ms,20ms,16ms/115VAC

INPUT

Voltage Range

90¡«264 VAC 47¡«63Hz£»127¡«370VDC

AC Current

0.55A/115VAC 0.35A/230VAC

Efficiency

 77% 81% 83% 83%

Inrush Current

COLD START30A/115VAC 75A/230VAC

Leakage Current

<0.25mA/240VAC

PROTECTION

Over Load

 110%~150%
Protection£ºHiccup mode,recovers automatically after fault condition is removed
OVER VOLTAGE 5.75~6.75V 13.8~16V 17.2~21V 28~30V
Protection£ºcut off the output ,recovers automatically after fault condition is removed
ENVIRONMENT

Working Temp., Humidity

-20¡æ¡«+60¡æ£»20%¡«90 %RH

Storage Temp., Humidity

-20¡æ¡«+85¡æ£»10%¡«95 %RH

Vibration

10¡«500Hz£¬2G 10min../1cycle£¬period for 60 min£¬each along X.Y.Z axes
SAFETY

Withstand Voltage

I/P-O/P:1.5KVAC

Isolation Resistance

I/P-O/P,: 100M Ohms / 500VDC
STANDARD

Safety Standard

EN61347-1 EN61347-2-13 IP67

EMC Standard

EN55015 EN61547 EN61000-3.4 CLASSB

OTHERS

Weight

118*35*26£¨L*W*H£©

Packing

0.22kg/90pcs/21kg/0.027m3

NOTE

1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25 of ambient temperature.
2.Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3.Tolerance : includes set up tolerance, line regulation and load regulation.
