MODEL:HVU-35N Single Output Waterproof Power Supply |
Features:
Protections: Short circuit/Over load/Over voltage/High temperature
Waterproof grade: IP67
Working Frequncy: 65KHz
Suitable for LED lighten and moving sign applications.
1 year warranty

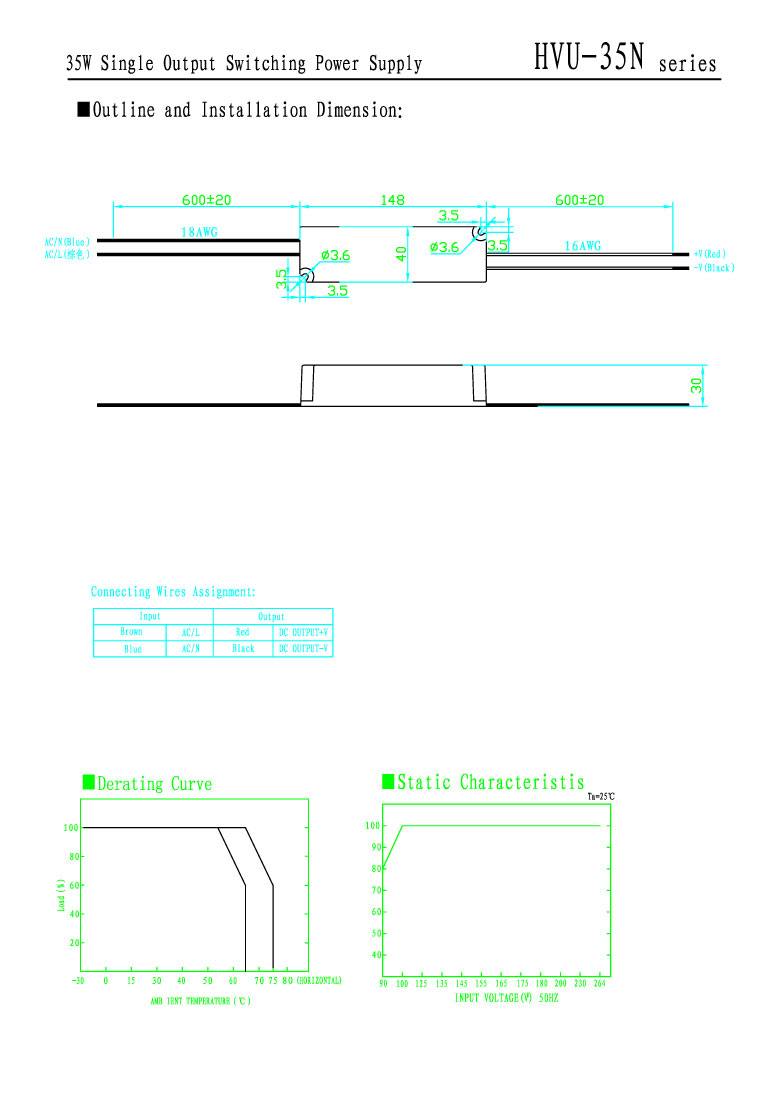

Dimensions: 148*40*30mm £¨L*W*H£© |
Shell code£ºH055 |
|
MODEL |
HVU-35N-5 |
HVU-35N-12 |
HVU-35N-15 |
HVU-35N-24 |
OUTPUT |
DC Voltage |
5V |
12V |
15V |
24V |
Voltage Tolerance(note 3) |
¡À5% |
¡À5% |
¡À5% |
¡À5% |
Rated Current(note 5) |
6A |
3A |
2.4A |
1.5A |
Current Range |
0-6A |
0-3A |
0-2.4A |
0-1.5A |
Rated Power |
30W |
36W |
36W |
36W |
Ripple & Noise(note 2) |
80mVp-p |
120mVp-p |
120mVp-p |
150mVp-p |
Setup, Rise, Hold Time |
500ms,20ms,50ms/230VAC 500ms,20ms,16ms/115VAC |
INPUT |
Voltage Range |
90¡«264 VAC 47¡«63Hz£»127¡«370VDC |
AC Current |
0.8A/115VAC 0.4A/230VAC |
Efficiency |
77% |
84% |
84% |
85% |
Inrush Current |
COLD START30A/115VAC 60A/230VAC |
Leakage Current |
<0.25mA/240VAC |
PROTECTION |
Over Load |
110%~150% |
Protection£ºHiccup mode,recovers automatically after fault condition is removed |
OVER VOLTAGE |
5.75~6.75V |
13.8~16.2V |
17.2~20.2V |
27.6~32.4V |
Protection£ºcut off the output ,recovers automatically after fault condition is removed |
ENVIRONMENT |
Working Temp., Humidity |
-20¡æ¡«+60¡æ£»20%¡«90 %RH |
Storage Temp., Humidity |
-20¡æ¡«+85¡æ£»10%¡«95 %RH |
Vibration |
10¡«500Hz£¬2G 10min../1cycle£¬period for 60 min£¬each along X.Y.Z axes |
SAFETY |
Withstand Voltage |
I/P-O/P:1.5KVAC |
Isolation Resistance |
I/P-O/P,: 100M Ohms / 500VDC |
STANDARD |
Safety Standard |
EN61347-1 EN61347-2-13 IP67 |
EMC Standard |
EN55015 EN61547 EN61000-3.4 CLASSB |
OTHERS |
Weight |
148*40*30£¨L*W*H£© |
Packing |
0.34kg/48pcs/17kg/0.024m3 |
NOTE |
1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25 of ambient temperature.
2.Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf
parallel capacitor.
3.Tolerance : includes set up tolerance, line regulation and load regulation. |
