MODEL:HVU-50 Single Output Waterproof Power Supply

Features:
High efficiency, High reliability, Low cost
Protections: Short circuit/Over load/Over voltage/High temperature
Waterproof grade: IP67
Working Frequency: 65KHz
Suitable for LED lighten and moving sign applications.
1 year warranty

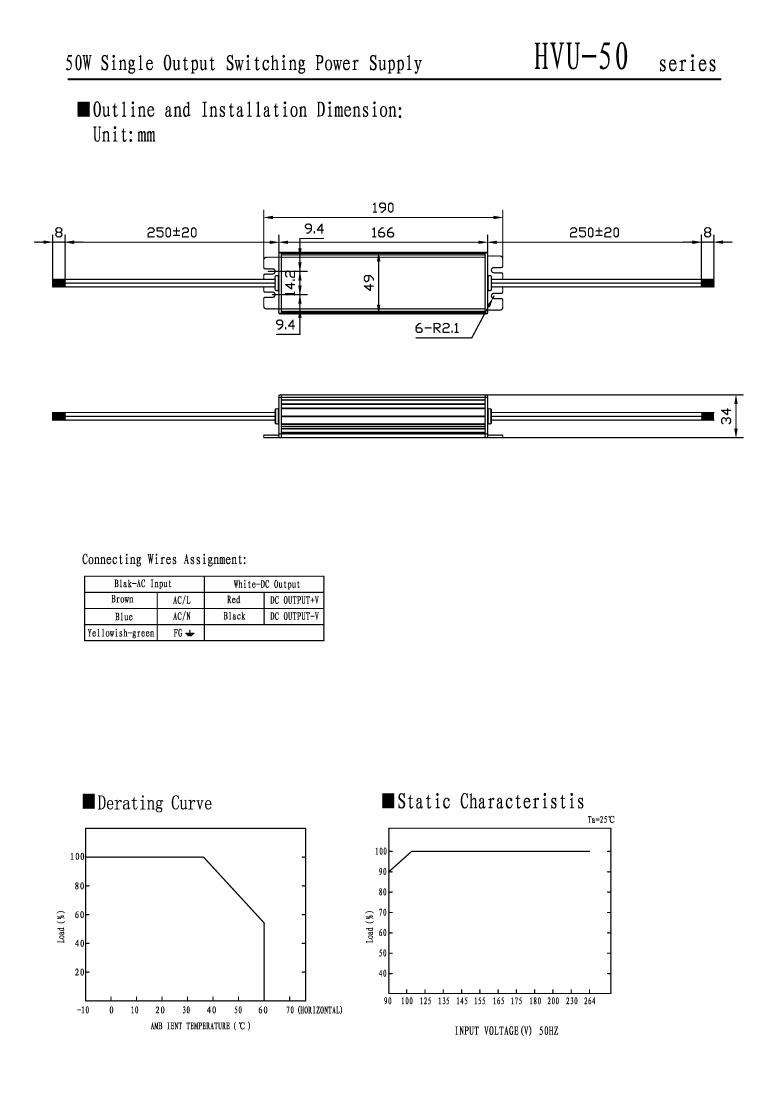

Dimensions: 190*49*34mm £¨L*W*H£©

Shell code£ºH053

MODEL

 HVU-50-12 HVU-50-24 HVU-50-36 HVU-50-48
OUTPUT

DC Voltage

 12V 24V 36V 48V

Voltage Tolerance(note 3)

 ¡À3% ¡À3% ¡À3% ¡À3%

Rated Current(note 5)

 4.2A 2.1A 1.4A 1.1A

Current Range

 0-4.2A 0-2.1A 0-1.4A 0-1.1A

Rated Power

 50.4W 50.4W 50.4W 52.8W

Ripple & Noise(note 2)

 100mVp-p 150mVp-p 180mVp-p 180mVp-p

Setup, Rise, Hold Time

500ms,20ms,24ms/230VAC , 800ms,30ms,20ms/115VAC
INPUT

Voltage Range

90¡«264 VAC 47¡«63Hz; 126¡«373VDC

AC Current

0.65A/230VAC 1.3A/115VAC

Efficiency

 82% 84% 85% 88%

Inrush Current

COLD START35A/230VAC

Leakage Current

<1mA/240VAC
PROTECTION

Over Load

 115%~150%
Protection: Hiccup mode,recovers automatically after fault condition is removed
OVER VOLTAGE 15~17V 30~32V 42~44V 55-64V
Protection: Hiccup mode,recovers automatically after fault condition is removed
HIGH TEMPERATURE ¡Ý90¡æ¡À10%(JK1)

Protection: cut off the output,recovers automatically after fault condition is removed
ENVIRONMENT

Working Temp., Humidity

-10¡æ¡«+60¡æ£»20%¡«90 %RH

Storage Temp., Humidity

-20¡æ¡«+85¡æ£»10%¡«95 %RH

Vibration

10¡«500Hz£¬2G 10min./1cycle£¬period for 60 min£¬each along X.Y.Z axes
SAFETY

Withstand Voltage

I/P-O/P:1.5KVAC I/P-FG: 1.5KVAC O/P-FG:0.5KVAC

Isolation Resistance

I/P-O/P, I/P-FG, O/P-FG: 100M Ohms / 500VDC
STANDARD

Safety Standard

EN61347-1 EN61347-2-13 EN62384 IP67

EMC Standard

EN55015 EN61547 EN 61000-3-2/3 EN61000-4-2/3/4/5/6/8/11
OTHERS

Dimensions

190*49*34£¨L*W*H£©

Packing

0.53kg/30pcs/17kg/0.92CUFT
NOTE

1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25 of ambient temperature.
2.Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3.Tolerance : includes set up tolerance, line regulation and load regulation.
