MODEL:HVU-60 Single Output Waterproof Power Supply

Features:
High efficiency, High reliability, Low cost
Protections: Short circuit/Over load/Over voltage/High temperature
Waterproof grade: IP67
Working Frequency: 65KHz
Suitable for LED lighten and moving sign applications.
1 year warranty

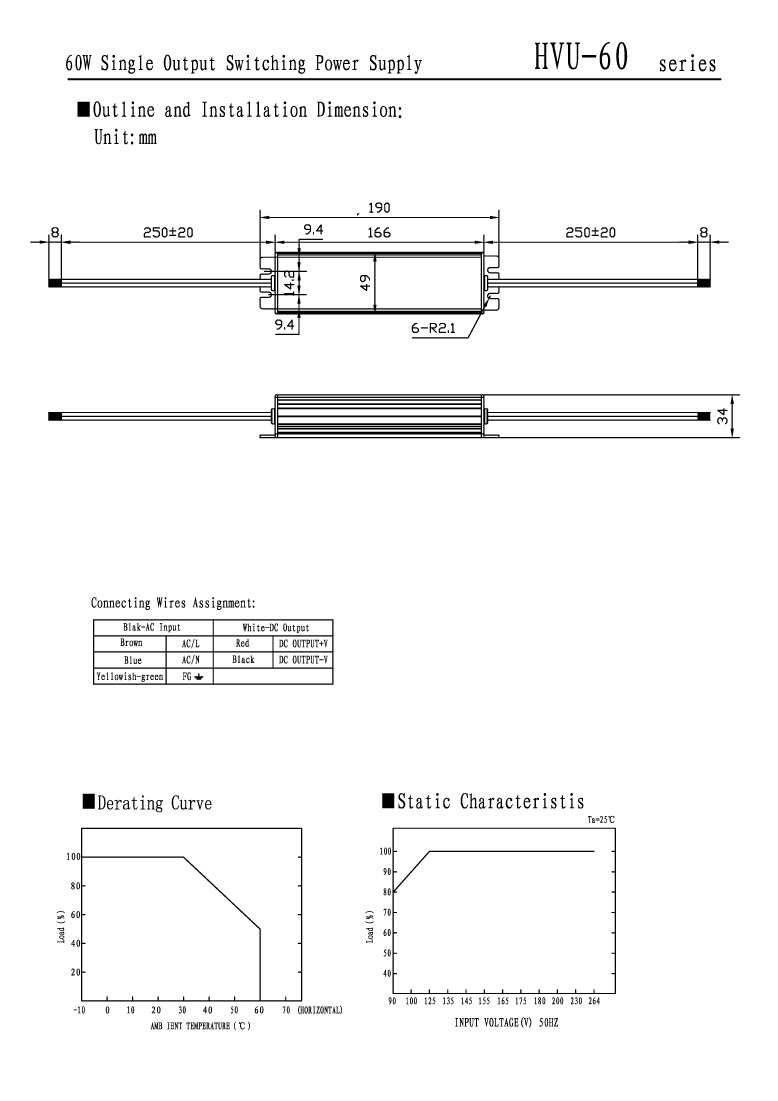

Dimensions: 190*49*34mm £¨L*W*H£©

Shell code£ºH056

MODEL

 HVU-60-12 HVU-60-24 HVU-60-36 HVU-60-48
OUTPUT

DC VOLTAGE

 12V 24V 36V 48V

VOLTAGE  TOLERANCE

 ¡À5% ¡À5% ¡À5% ¡À5%

RATED CURRENT

 5A 2.5A 1.7A 1.3A

CURRENT RANGE

 0-5A 0-2.5A 0-1.7A 0-1.3A

RATED POWER

 60W 60W 61W 62.4W

RIPPLE & NOISE

 100mVp-p 150mVp-p 180mVp-p 200 mVp-p

SETUP,RISE, TIME

500ms,20ms,24ms/230VAC , 800ms,30ms,20ms/115VAC
INPUT

VOLTAGE RANGE

90¡«264 VAC 47¡«63Hz; 126¡«373VDC

AC CURRENT

1.4A/115VAC 0.7A/230VAC

EFFICIENCY

 82% 84% 85% 85%

INRUSH CURRENT

COLD START35A/230VAC

LEAKAGE CURRENT

<1mA/240VAC
PROTECTION

OVER LOAD

 115%~135%
Protection: Hiccup mode,recovers automatically after fault condition is removed
OVER VOLTAGE 15~17V 30~32V 42~44V 55.2-64.8V
Protection: Hiccup mode,recovers automatically after fault condition is removed
HIGH TEMPERATURE

¡Ý90¡æ¡À10%(JK1)¡£
Protection: cut off the output,recovers automatically after fault condition is removed
ENVIRONMENT

Working Temp., Humidity

-10¡æ¡«+60¡æ£»20%¡«90 %RH

Storage Temp., Humidity

-20¡æ¡«+85¡æ£»10%¡«95 %RH

Vibration

10¡«500Hz£¬2G 10min./1cycle£¬period for 60 min£¬each along X.Y.Z axes
SAFETY

Withstand Voltage

I/P-O/P:1.5KVAC I/P-FG: 1.5KVAC O/P-FG:0.5KVAC

Isolation Resistance

I/P-O/P, I/P-FG, O/P-FG: 100M Ohms / 500VDC
STANDARD

Safety Standard

EN61347-1 EN61347-2-13 EN62384 IP67

EMC Standard

EN55015 EN61547 EN 61000-3-2/3 EN61000-4-2/3/4/5/6/8/11
OTHERS

Dimensions

190*49*34£¨L*W*H£©

Packing

0.55kg/30pcs/17.5kg/0.92CUFT
NOTE

1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25 of ambient temperature.
2.Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf
parallel capacitor.
3.Tolerance : includes set up tolerance, line regulation and load regulation.
